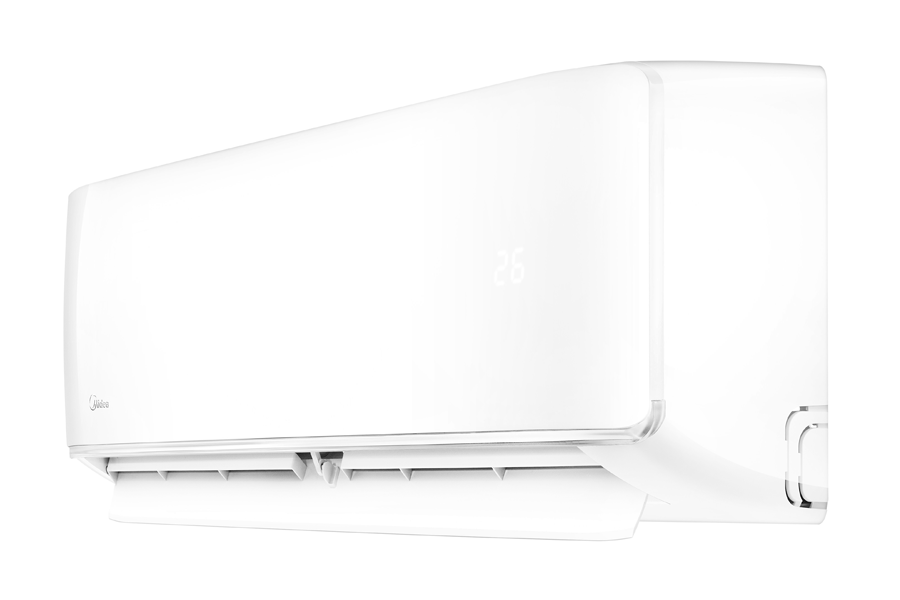

Conditioner MSAB-36HRN1

Model number: MSAB-36HRN1

Type: ON/OFF
Modes: Cooling / Heating
Power: 36000 BTU
Warranty: 4 years

In Stock

Price: 3340 GEL

Conditioner MSAB-30HRN1

Start BTU Calculation

Specification

Explore Product Specifications

Model NO.			MSAB-36HRN1
Power supply		V,Hz,Ph	380-420V, 50Hz, 3Ph
Cooling	Capacity	Btu/h	36000
	Input	W	3505
	Rated current	A	5.3
	EER	W/W	3.0102700379461
Heating	Capacity	Btu/h	38000
	Input	W	3266
	Rated current	A	4.9
	COP	W/W	3.4100315230493
Max. input consumption		W	4800
Max. current		A	8
Starting current		A	51
Compressor	Model		NN37YCAMT
	Type		ROTARY
	Brand		MITSUBISHI
	Capacity	Btu/h	32755
	Input	W	3050
	Rated current(RLA)	A	5.4
	Locked rotor Amp(LRA)	A	51
	Thermal protector		CS01D350H03(RDR-S400)
	Thermal protector position		INTERNAL
	Capacitor	uF	/
	Refrigerant oil/oil charge	ml	FV50S / 1300
Indoor fan motor	Model		YKFG-60-4-2
	Input	W	100
	Capacitor	uF	3.5
	Speed((turbo)/Hi/Mi/Lo)	r/min	1210/1080/900
Indoor coil	a.Number of rows		3
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37
	c.Fin spacing	mm	1.3
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,innergroove tube
	f.Coil length x height x width	mm	96537840.11
	g.Number of circuits		7
Indoor air flow((turbo)/Hi/Mi/Lo)		m3/h	1459/1280/1037
Indoor noise level((turbo)/Hi/Mi/Lo)		dB(A)	49/44/39
Indoor unit	Dimension(WDH)	mm	1259x282x362
	Packing (WDH)	mm	1340x380x450
	Net/Gross weight	Kg	21.3/27.1
Outdoor fan motor	Model		YKT-60-6-40
	Input	W	133/125
	Capacitor	uF	5
	Speed (HI)	r/min	800/750/600
Outdoor coil	a.Number of rows		2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37
	c.Fin spacing	mm	1.4
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,innergroove tube
	f.Coil length x height x width	mm	1010x756x26.74
	g.Number of circuits		6
Outdoor noise level		dB(A)	60.5
Outdoor unit	Dimension(WDH)	mm	946x410x810
	Packing (WDH)	mm	1090x500x875
	Net/Gross weight	Kg	71.3/76.9
Refrigerant type		g	R410A/2600
Design pressure		MPa	4.2/1.5
Refrigerant piping	Liquid side/ Gas side	mm(inch)	Φ9.52/Φ15.9(3/8"/5/8")
	Max. refrigerant pipe length	m	30
	Max. difference in level	m	15
Connection wiring			4*1.5(Optional)
Plug type			----
Thermostat type			Remote Control
Operation temperature		℃	17-30
Room temperature	Indoor(cooling/ heating)	℃	17-32/0-30
	Outdoor(cooling/heating)	℃	18-43/-7-24
Application area		m2	48-70
Qty’per 20’ /40’ /40'HQ
