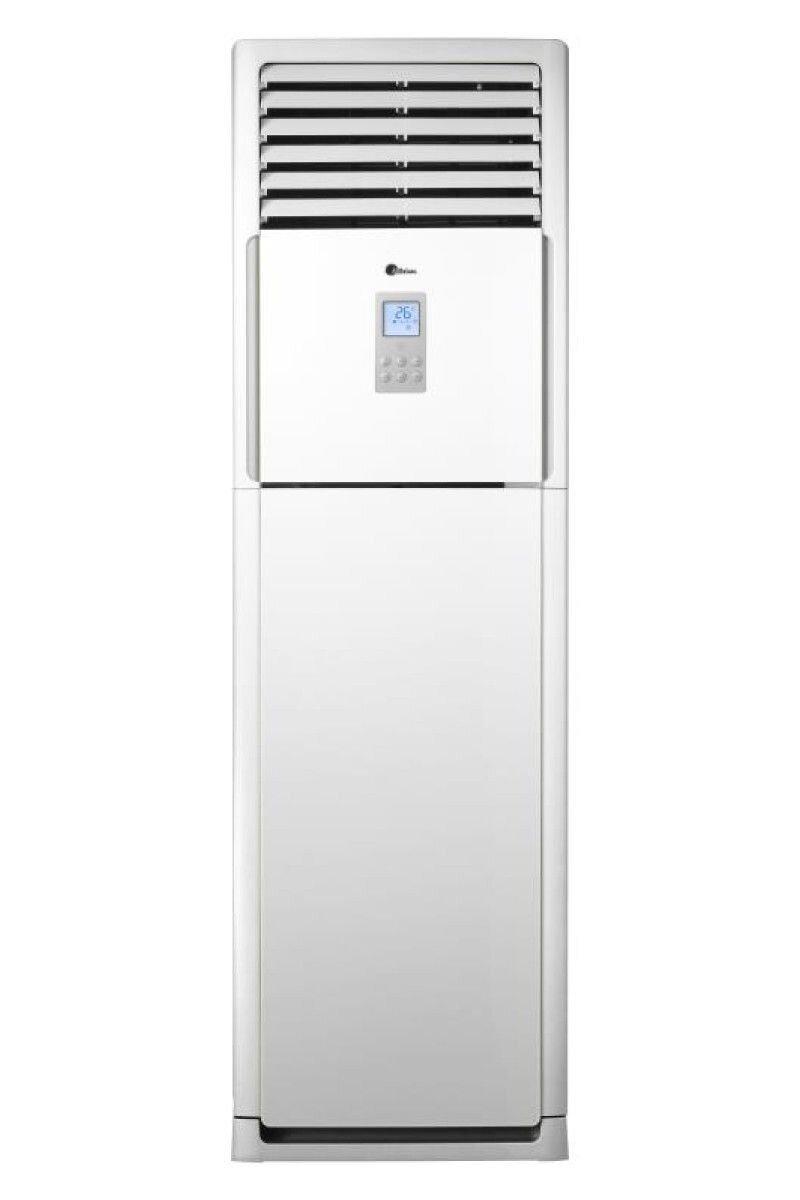

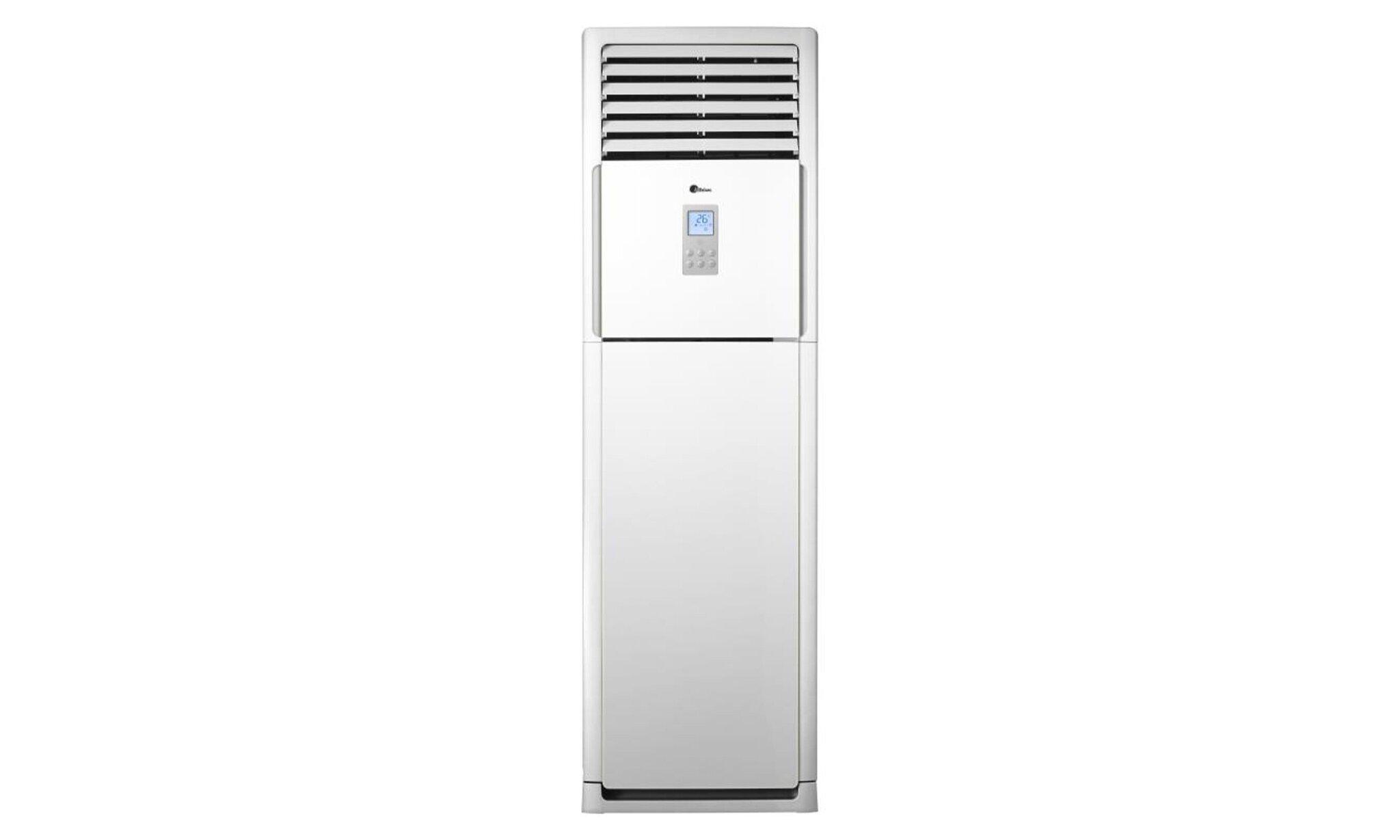

Floor Standing Conditioner MFM-60ARN1-RB6

Model number: MFM-60ARN1-RB6
Type: ON/OFF
Modes: Cooling / Heating
Power: 60000 BTU
Warranty: 2 years
In Stock
Price: 4810 GEL
Specification
Model NO. MFM-60ARN1
Power supplyV,Hz,Ph380V,50Hz,3Ph
CoolingCapacity Btu/h57900
Input W6500
Rated current A11.0
EER W/W2.61
HeatingCapacity Btu/h62000+12000
Input W5300+3700
Rated current A10.0+5.3
COP W/W3.43
Max. input consumption W8200+3700
Max. current A14.7+5.3
Starting current A67
CompressorModel C-SBN453H8D
Type SCROLL
Brand PANASONIC
Capacity Btu/h55957/69264
Input W5750/6750
Rated current(RLA) A9.77/9.84
Locked rotor Amp(LRA) A67
Thermal protector ----
Thermal protector positionINTERNAL
Capacitor uF- -
Refrigerant oil/oil charge mlFV68S/1700
Indoor fan motorModel YKS-160-8-1
Old Model YDK160-8
Input W347/308
Capacitor uF9.0
Speed(Hi/Mi/Lo)or (Hi/Lo)r/min615 / 530
Indoor coila.Number of rows3
b.Tube pitch(a)x row pitch(b) mm25.4x22
c.Fin spacing mm1.5
d.Fin type (code)Hydrophilic aluminium
e.Tube outside dia.and type mmΦ9.52,innergroove tube
f.Coil length x height x width mm484x812x66
g.Number of circuits6
Indoor air flow(Hi/Mi/Lo)or (Hi/Lo)m3/h2250/1950
Indoor noise level (Hi/Mi/Lo)or (Hi/Lo)dB(A)54/51
Indoor unitDimension(W*D*H)mm600x455x1934
Packing (W*D*H)mm2040x745x595
Net/Gross weight Kg68.5/88.3
Outdoor fan motorModel YKT-65-6-34Lx2
Old Model YDK65-6F(B) x2
Input W162
Capacitor uF3.5
Speed r/min765
Outdoor coila.Number of rows2
b.Tube pitch(a)x row pitch(b) mm22x19.05
c.Fin spacing mm1.6
d.Fin type (code)Hydrophilic aluminium
e.Tube outside dia.and type mmΦ7.94,innergroove tube
f.Coil length x height x width mm837x1100x38.1
g.Number of circuits8
Outdoor noise level dB(A)64
Outdoor unitDimension(W*D*H)mm900x350x1170
Packing (W*D*H)mm1032x443x1307
Net/Gross weight Kg96 / 107
Refrigerant typegR410A/3200g
Design pressure MPa4.2/1.5
Refrigerant pipingLiquid side/ Gas side mm(inch)Φ12.7/Φ19(1/2"/3/4")
Max. refrigerant pipe length m50
Max. difference in level m30
Connection wiring mm22.5(Optional)
Plug type- -
Thermostat typeRemote Control
Operation temperature17-30
Room temperatureIndoor(cooling/ heating)17-32/0-30
Outdoor(cooling/heating)18-43/-7-24
Application area m277-113
Qty’per 20’ /40’ /40'HQ 17/34/42
