Products

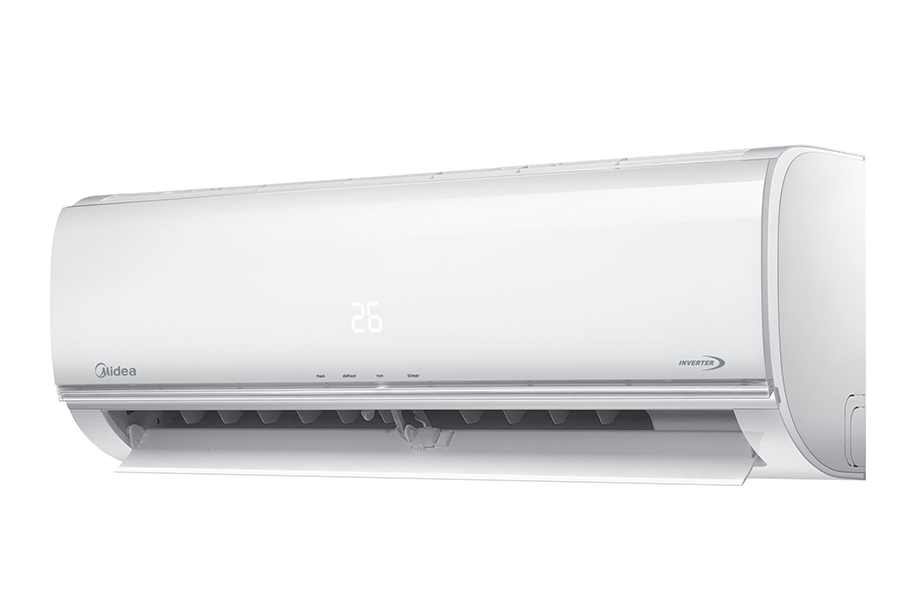

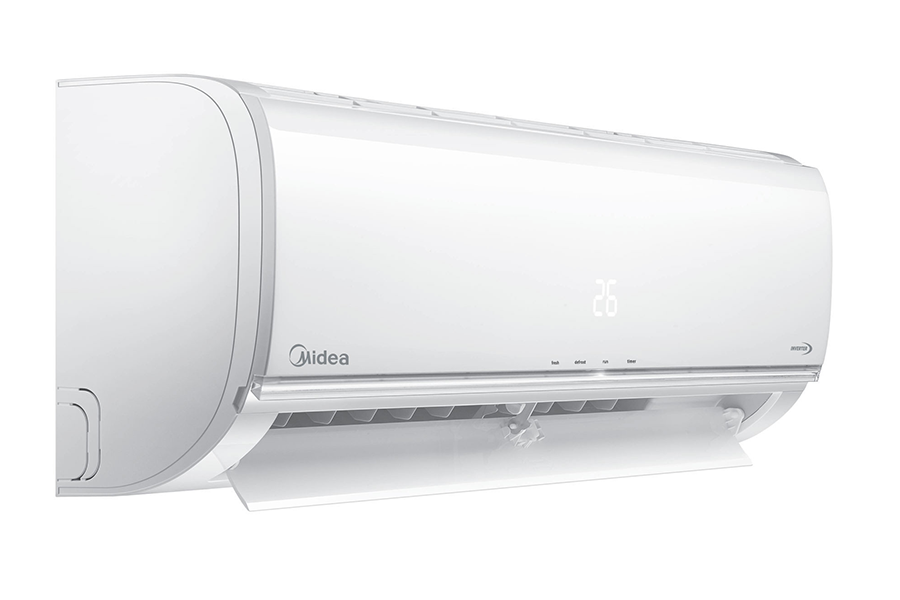

conditioner AF-18N8DO
Refrigerant type: R32
A++/A+ Class
Follow me
Warranty: 5 years
* Manufacturer reserves the right to
change specifications or design without prior notice.
Model | NEW AF-18N8D0 | |||
Power supply | Ph-V-Hz | 220-240V,1Ph,50Hz | ||
Inverter | Yes | |||
Standard conditions | Cooling | Capacity | Btu/h | 18000(6200~21000) |
Input | W | 1550(140~2300) | ||
Current | A | 6.7(0.6~10) | ||
EER | W/W | 3.40 | ||
Heating | Capacity | Btu/h | 19000(4400~23000) | |
Input | W | 1570(220~2350) | ||
Current | A | 6.8(0.95~10.2) | ||
COP | W/W | 3.61 | ||
Seasonal conditions | Seasonal Cooling | Pdesignc | kW | 5.2 |
SEER | W/W | 7.4 | ||
Energy Efficiency Class | A++ | |||
Heating(Average ) | Pdesignh | kW | 4.1 | |
SCOP | W/W | 4.0 | ||
Energy Efficiency Class | A+ | |||
Heating(Warmer ) | Pdesignh | kW | 4.4 | |
SCOP | W/W | 5.1 | ||
Energy Efficiency Class | A+++ | |||
Rated Power Input | W | 2500 | ||
Rated Current | A | 13 | ||
Compressor | Brand | GMCC | ||
Indoor fan motor | Speed(Hi/Mi/Lo) | r/min | 1130 / 900 / 800 | |
Indoor air flow (Hi/Mi/Lo) | m3/h | 840/680/540 | ||
Indoor noise level (Hi/Mi/Lo) | dB(A) | 42.5/36/26 | ||
Indoor sound power level (Hi) | dB(A) | 56 | ||
Indoor unit | Dimension(W*D*H) | mm | 957x213x302 | |
Packing (W*D*H) | mm | 1035x305x380 | ||
Net/Gross weight | Kg | 10/13.1 | ||
Outdoor fan motor | Speed | r/min | 740/650 | |
Outdoor air flow | m3/h | 2100 | ||
Outdoor sound pressure level | dB(A) | 56 | ||
Outdoor sound power level | dB(A) | 63 | ||
Outdoor unit | Dimension(W*D*H) | mm | 805x330x554 | |
Packing (W*D*H) | mm | 940x410x605 | ||
Net/Gross weight | Kg | 32.7/37.0 | ||
Refrigerant | Type | R32/1.08 kg | ||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | 6.35mm(1/4in)/12.7mm(1/2in) | |
Max. refrigerant pipe length | m | 30 | ||
Application area (Cooling Standard) | m2 | 55-60 | ||
Selling points | ||||
High density filter | YES | |||
Self-cleaning | YES | |||
Golden fin | YES | |||
Refrigerant leakage detect | YES | |||
8°C heating (frost protection) | YES | |||
Turbo operation | YES | |||
Follow me | YES | |||
Timer | YES | |||
Louver position memory function | YES | |||
Mute Mode | YES | |||
Sleep mode | YES | |||
1W standby | YES | |||
Wifi port | YES |
