Products

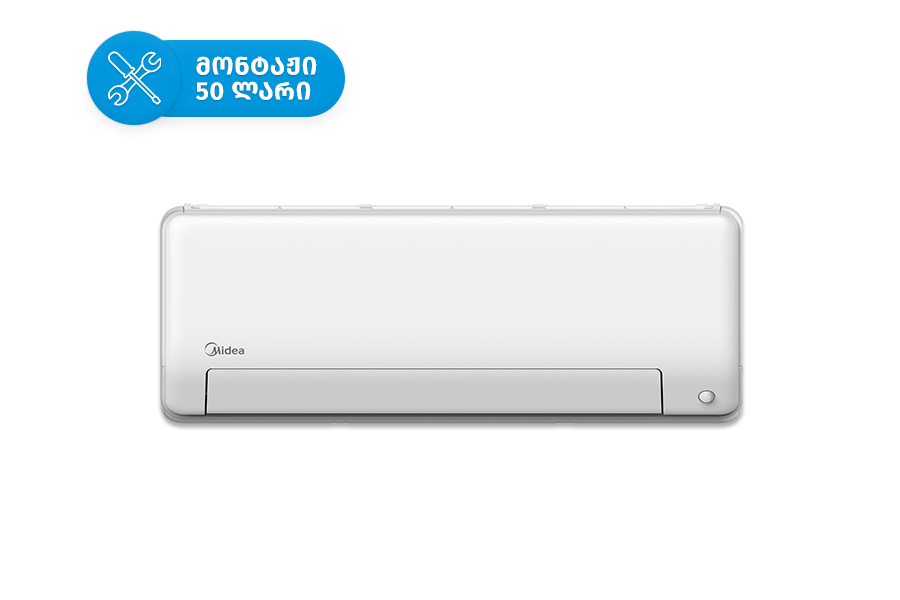

conditioner MAE-12N8D6
Modes: Cooling / Heating
Power: 12000 BTU (35-40m²)
Refrigerant type:R32
Follow me
Warranty: 5 years
* Manufacturer reserves the right to
change specifications or design without prior notice.
Model | MAE-12N8D6 | ||
Color | White | ||
Power supply | Ph-V-Hz | 220-240V,1Ph,50Hz | |
Rated Cooling Capacity | Btu/h | 12000(4500~13500) | |
Cooling Power input | W | 880(130~1250) | |
EER | W/W | 4 | |
Rated Heating Capacity | Btu/h | 13500(3000~15500) | |
Heating Power input | W | 990(120~1450) | |
COP | 4 | ||
Cooling | |||
Pdesignc | kW | 3.5 | |
SEER | W/W | 8.5 | |
Energy Efficiency Class | A+++ | ||
Heating | |||
Pdesignh | kW | 2.4 | |
SCOP | W/W | 4.6 | |
Energy Efficiency Class | A++ | ||
Max. input consumption | W | 2300 | |
Compressor | GMCC | ||
Indoor noise level (Hi/Mi/Lo/Si) | dB(A) | 59/40/33/22/21 | |
Functions | |||
INVERTER | A+++/A++(ERP4.6) | ||
GEAR Energy Saving | YES | ||
GA Stepless Techlogy | YES | ||
IECO Energy Saving | YES | ||
Flash cooling.Heating | YES | ||
Maximum Frequency in | 6 second | ||
Golden Fin | YES | ||
High Density Filters / Cold Catalyst filter | YES | ||
Low voltage | 80V | ||
Avoid me | YES | ||
Silky Cool | NO | ||
Silky Cool - Wind Sprayer | NO | ||
3D AirFlow | YES | ||
8℃ heating | YES | ||
Favourite Cool | YES | ||
Super Cool / Turbo | YES | ||
Follow me | YES | ||
Silence mode | YES | ||
Sleep Mode | YES | ||
Louver Position Memory | YES | ||
Self-Clean Function | NO | ||
I-clean | YES | ||
56 Degree clean | YES | ||
Ionizer | YES | ||
2-way Draining | YES | ||
Intellegent eye | YES | ||
One screw one minute | YES | ||
Wifi port | YES | ||
Ceilling distance | 5 cm | ||
1W Standby | YES | ||
Smart Control | YES | ||
User friendly with social media | YES | ||
Indoor unit | Dimension(W*D*H) mm | 795x225x295 | |
Packing (W*D*H) mm | 870x370x305 | ||
Net/Gross weight Kg | 10.2/14 | ||
Outdoor sound power level dB(A) | 65 | ||
Outdoor unit | Dimension(W*D*H) mm | 805x330x554 | |
Packing (W*D*H) mm | 940x410x605 | ||
Net/Gross weight Kg | 28.4/32.3 | ||
Refrigerant | Type | R32/0.69Kg | |
Refrigerant piping | Liquid side/ Gas side mm(inch) | 6.35mm(1/4in)/9.52mm(3/8in) | |
Max. refrigerant pipe length (m) | 25 | ||
Max. difference in level (m) | 10 | ||
Room temperature | Indoor(cooling/ heating) ℃ | 16~32/0~30 | |
Outdoor(cooling/heating) ℃ | -15~50/-20~24 |
