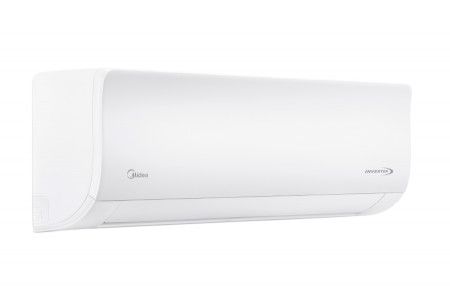

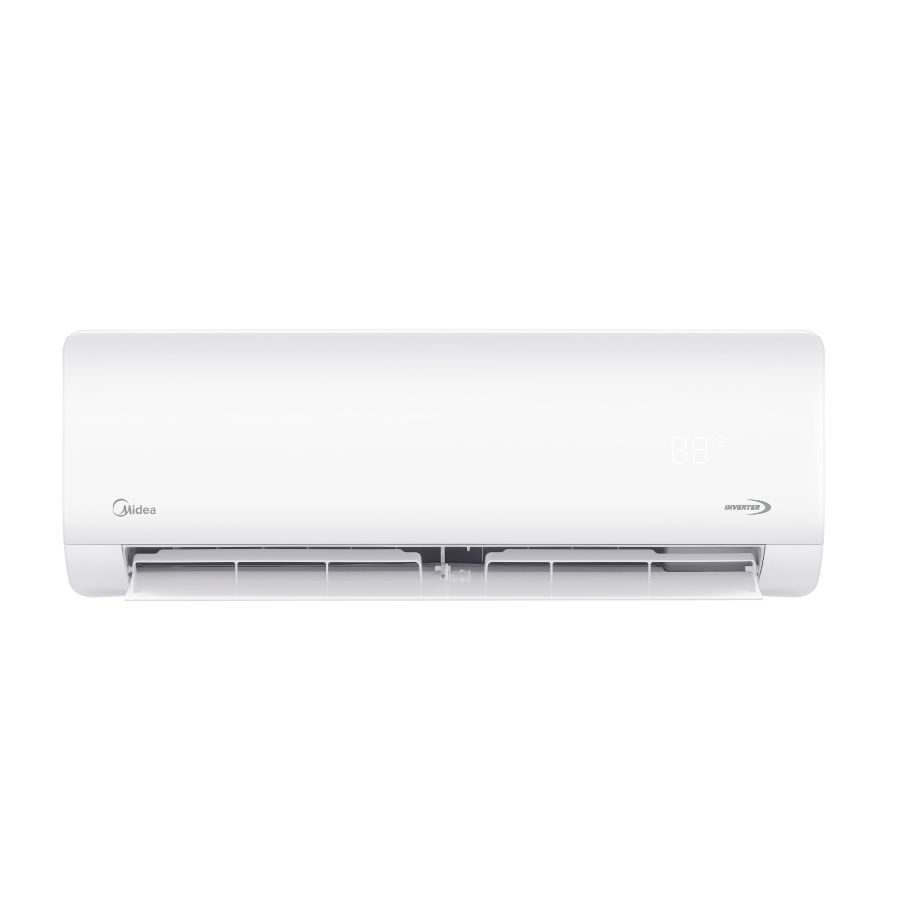

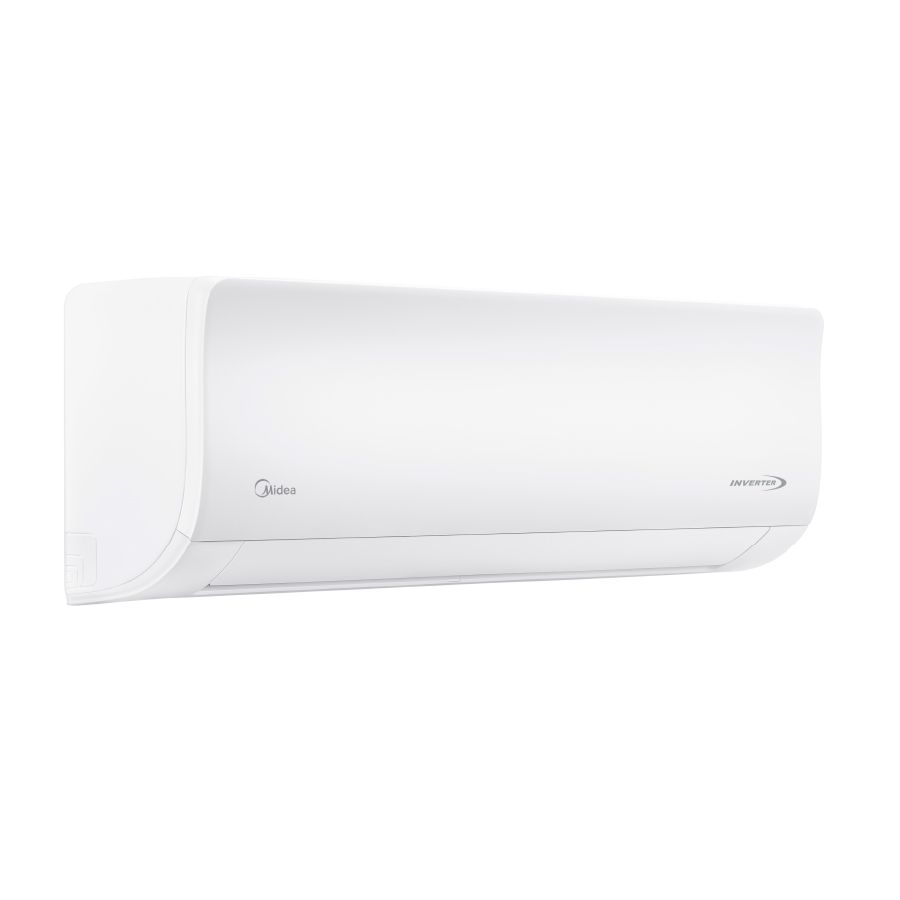

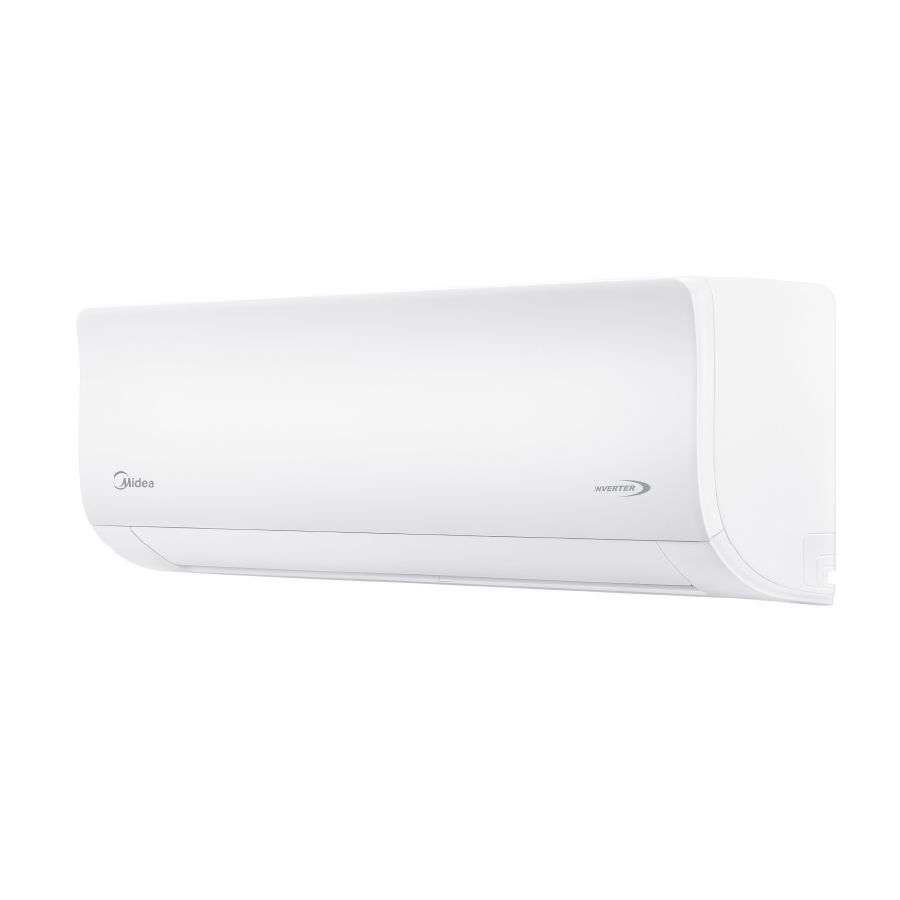

Conditioner MSTAB-36HRFN1-QC6
-
-
Power: 33000 BTU (100-120m²)
Type: Inventer
Wi-Fi Control
A Class
Warranty: 5 years
* Manufacturer reserves the right to
change specifications or design without prior notice.
-
Model | MSTAB-36HRFN1-QC6 | |||
Power supply | Ph-V-Hz | 220-240V,1Ph,50Hz | ||
Inverter | YES | |||
Standard conditions | Cooling(T1) | Capacity | Btu/h | 33000(10000-37000) |
Input | W | 2635(900-3600) | ||
Current | A | 11.78(4.1-16.0) | ||
EER | W/W | 12.524 | ||
Heating | Capacity | Btu/h | 33779(10236-39238) | |
Input | W | 2675(950-3700) | ||
Current | A | 11.95(4.2-16.2) | ||
COP | W/W | 3.7 | ||
Rated Power Input | W | 4300 | ||
Rated Current | A | 20 | ||
Compressor | Brand | HIGHLY | ||
Indoor fan motor | Speed(Hi/Mi/Lo) | r/min | 1250/1200/1050/950 | |
Indoor air flow (Hi/Mi/Lo) | m3/h | 1550/1440/1245/1100 | ||
Indoor noise level (Hi/Mi/Lo/Si) | dB(A) | 51.5/51/46/43 | ||
Indoor unit | Dimension(W*D*H) | mm | 1350x272x365 | |
Packing (W*D*H) | mm | 1475x375x460 | ||
Net/Gross weight | Kg | 21.3/28.4 | ||
Outdoor fan motor | Speed | r/min | 950/850/750 | |
Outdoor sound power level | dB(A) | 63 | ||
Outdoor unit | Dimension(W*D*H) | mm | 946x410x810 | |
Packing (W*D*H) | mm | 1090x500x875 | ||
Net/Gross weight | Kg | 64.8/72.8 | ||
Refrigerant | Type | R410A/2.8 kg | ||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ19(3/8"/3/4") | |
Max. refrigerant pipe length | m | 50 | ||
Room temperature | Indoor(cooling/ heating) | ℃ | 17~32/0~30 | |
Outdoor(cooling/heating) | ℃ | 0~52/-15~30 | ||
Application area (Cooling Standard) | m2 | 100~120 | ||
Selling points | ||||
High density filter | YES | |||
Self-cleaning | YES | |||
Golden fin | YES | |||
Auto-restart | YES | |||
Refrigerant leakage detect | YES | |||
Low noise airflow system(Silent) | YES | |||
Turbo operation | YES | |||
Horizontal louver autoswing | YES | |||
Follow me | YES | |||
Timer | YES | |||
ECO | YES | |||
Sleep mode | YES | |||
Wifi port | YES |
